You’ve come to the right place for your underwater imaging, search and recovery, and measurement needs. At MEKE SubSea, our modern and proven robotic systems are ready to help you find solutions to your needs.
Inventory
Deep Trekker DTG2
Extremely fast deployable for a variety of operations, the DTG2 is extremely tiny, but with surprising capabilities for its size and independence from power supply.
75m depth limit
Two thrusters with 180 degree mobility
HD main camera with 270 degree vertical movement
6-hour battery life, independent of external power supply
Live video streaming and recording capability on the operator control
RCA output for transferring images and recording
35 cm full size
Ability to dive in -4°C and 80°C water
22 manipulators capable of handling workloads
900 lumen flashlight
Saab Falcon
Falcon is the most successful underwater robotic system in its class. It has proven itself in numerous complex and challenging missions in many commercial, security and scientific sectors.
It provides superior vehicle control and diagnostic data, as well as the ability to customize the pilot display and station features to meet specific needs. With the power of its thrusters, it provides both precise control and control of its posture in strong currents and turbulent waters. With its navigation pod, multiple led lights and high-resolution camera, it is always ready to lead expeditions.
1m x 50cm x 60 cm volume
60 kilos of weight
speed of 3 knots
300 m depth limit

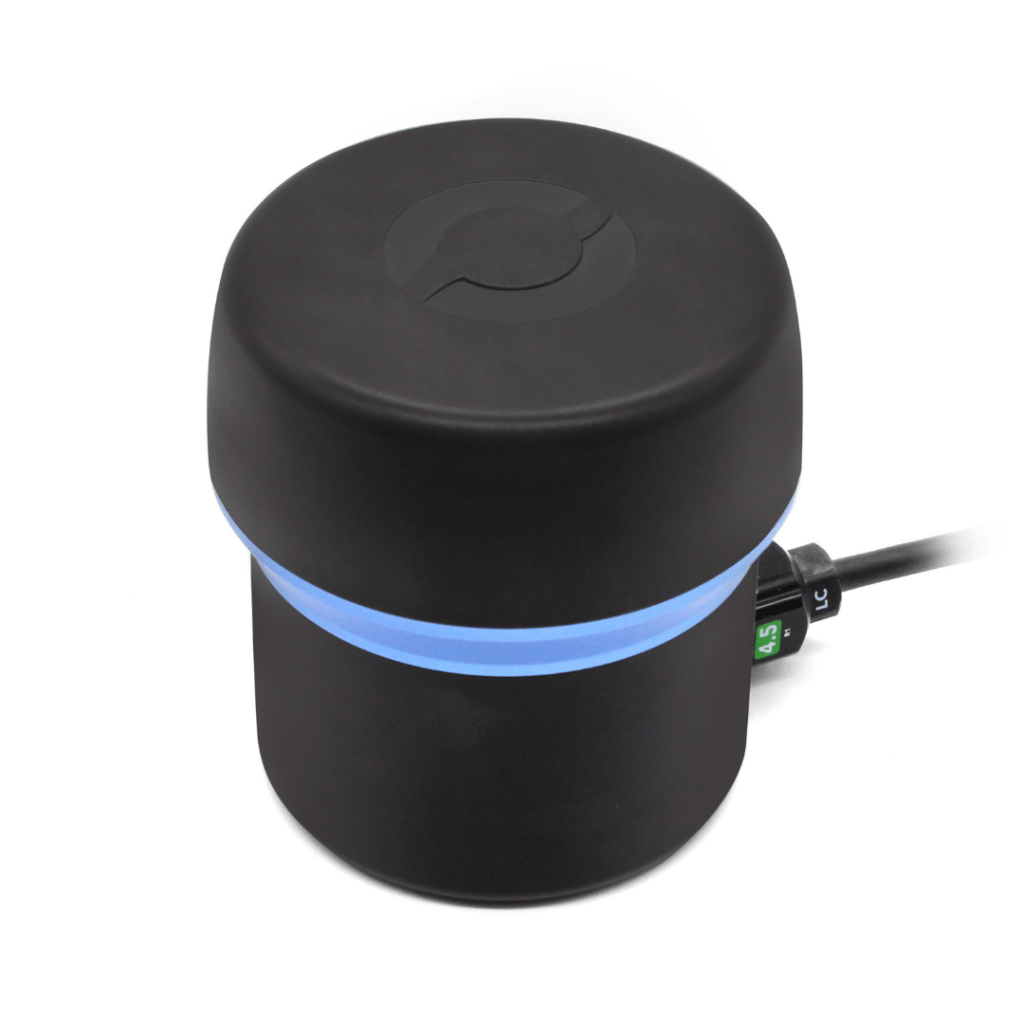

BlueROV Sonar
Obstacle avoidance, target, position tracking and much more for navigation in low visibility water conditions.
With a range of 50 meters, the sonar regularly provides the ROV pilot with a top-down circular view of the ROV's surroundings. It enables the visualization of environmental figures such as ropes, walls, dock pilings, rocks, shipwrecks, boats, fish and other structures or objects reflecting sound waves. Regardless of the view on the water, it provides reference points for navigation and acts as a third eye for the pilot.
300 m depth limit
Ability to dive in 30°C - 32°C degree water
Hydrolek HLK-43000 5 Function Manipulator
This manipulator has been specifically developed to provide manipulation capabilities on observation class vehicles.
Ideal for debris cleaning, rope cutting, biological and geological sampling, archaeological work, wreck removal and salvaging.
The HLK-21020 manipulator utilizes a jaw rotator with 180 degrees of movement at the wrist, has a 90 mm (3.5″) jaw span and the capacity to cut up to 6 mm soft rope with the rope cutter on the side of the jaw plates. Instead of the traditional position-controlled movement, it has speed rate-controlled movement that is controlled by the operatorl.
5-function manipulator with mobility
10Kg workload carrying capacity when unfolded to its longest state
180 degree wrist rotation range and 90 mm (3.5″) jaw opening
6mm (1/4″) soft rope cutting capacity
Weight in air 8.4 kg (18.5 lb)
Weight in water 4.2 kg (9.24 lb)
Operational depth limit 3000msw (9,840ft)
Maximum reach 660mm (26″)
Rate controlled mobility
Metal types used: 316 Stainless Steel, 6082 Aluminum, HDPE
Types of Gasket Materials: Nitrile/NBR/Buna-N, PTFE
Product coating hard anodized, painted
Ports 1/8″ BSPP (ISO 1179)
Max. working pressure 80 bar (1160psi)
Hydraulic flow 0.5 lpm to 6 lpm (0.13 gpm to 1.58 gpm)
Fluid Mineral Type: DIN 51524, ISO 11158, ISO 6743-4
Fluid Temperature 5-60 C (41-140 F)
Cleaning Classification ISO 4406:19/17/14, NAS 1638:8, AS4059:9A/8B/8C
Wrist Torque 80bar at 8.2Nm (60psi at 6lbf.ft)
Jaw force 80bar at 124N (1160psi at 27.9lbf)
Operating Temperature 5-60oC (41-140o F)
Storage Temperature 0-70oC (32-158oF)
